CS8365C HWD

Name: CS8365C HWD
Brand: Hubbell Wiring Device-Kellems
SKU: CS8365C HWD
Availability: OutOfStock

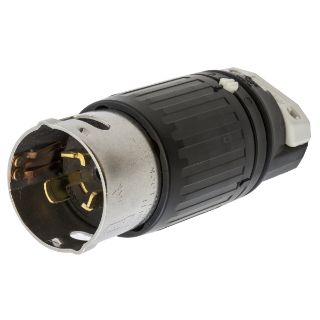

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

CS8365C

product.name:

CS8365C HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Extra Heavy Duty Grounding Standard Sized Male

Alternate Supplier #

Grainger - 3D334

Description

Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 3-Phase Extra Heavy Duty Grounding Standard Sized Male, Series: CS Series, 250 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, IP20 Enclosure, 0.83 to 1.25 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.59 in Dia x 6.38 in L

Application

Power Connection Applications

Standards

UL 498 | CSA C22.2 No. 42

Features

Glass reinforced PET blade holder, terminal retainer, cord clamp
Brass blade, bronze box terminal clamp
Stainless steel terminal screw, 302/304 stainless steel cord clamp screw and body holding screw
Molded in or stamped on ratings
Withstands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
Stainless steel Safety-Shroud®, neoprene seal
Nylon seal cup
Copper box terminal
Supertough® nylon housing offers better impact qualities
Stainless steel shroud protects contacts and prevents mismating
Heavy duty 2-piece external cord clamp provides maximum strain relief
Box terminal with hex soaring threaded slug, permits high clamping pressure on conductors without damaging strands
Thermoplastic polyester interior provides heat resistance and impact strength
Non-NEMA rating

Specifications

Amperage Rating:	50 A
Color:	Black/White
Cord Diameter:	0.83 to 1.25 in
Country of Origin:	US
Dimensions:	2.59 in Dia x 6.38 in L
Enclosure:	IP20
Grade:	Industrial
Material:	Composite
Number of Poles:	3
Number of Wires:	4
Series:	CS Series
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	250 VAC
