CS8364C HWD

Name: CS8364C HWD
Brand: Hubbell Wiring Device-Kellems
SKU: CS8364C HWD
Availability: OutOfStock

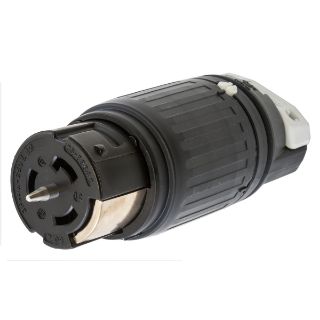

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

CS8364C

product.name:

CS8364C HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Non-Grounding Standard Heavy Duty Insulated

Alternate Supplier #

Grainger - 3D333

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, 3-Phase Female Non-Grounding Standard Heavy Duty Insulated, Series: CS Series, 250 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 6.34 in L x 2.59 in W

Standards

UL 498 | CSA C22.2 No. 42

Features

Black nylon contact nose, glass reinforced pet terminal retainer
Steel pressure screw zinc plate terminal screw
Steel pressure screw zinc plate ground screw
302/304 stainless steel cord clamp screw
Black nylon body contact carrier, 0.04 in brass contact spring material, 0.1 in brass spring binding plate
Brass ground contact material, molded-in or stamped on ratings, withstands 2000 VAC minimum dielectric voltage
Certified for current interrupting at full rated current
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
10 to 6 AWG terminal accommodation
Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
Neoprene seal material, nylon seal cup material
302/304 stainless steel assembly material, Supertough nylon (white) latches material
Copper box terminals, Rynite (black) contact holder
Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
Heavy duty two-piece external cord clamp provides maximum strain relief
Thermoplastic polyester interior provides heat resistance and impact strength
Oversized contacts minimize operating temperature

Specifications

Amperage Rating:	50 A
Color:	Black/White
Cord Diameter:	3/4 to 1-1/8 in
Country of Origin:	US
Dimensions:	6.34 in L x 2.59 in W
Enclosure:	IP20
Grade:	Industrial
Material:	Composite
Number of Poles:	3
Number of Wires:	4
Series:	CS Series
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	250 VAC

Customers who bought this item also bought

CS8365C HWD

MFG: Hubbell Wiring Device-Kellems

MFG#:CS8365C

Info:Wiring Device-Kellems Twist-Lock® Insulgrip® CS8365C 3-Phase Extra Heavy Duty Grounding Standard Sized Male Locking Plug, 250 VAC, 50 A, 3 Poles, 4 Wires, Black/White

$ -.--

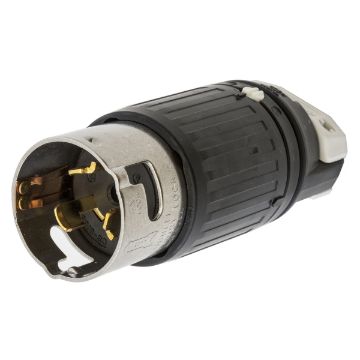

CS8165C HWD
