CS8164C HWD

Name: CS8164C HWD
Brand: Hubbell Wiring Device-Kellems
SKU: CS8164C HWD
Availability: OutOfStock

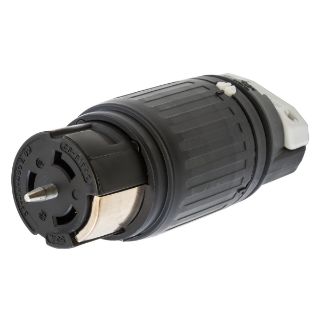

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

CS8164C

product.name:

CS8164C HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Non-Grounding Standard Heavy Duty Insulated

Alternate Supplier #

Grainger - 3D327

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, 3-Phase Female Non-Grounding Standard Heavy Duty Insulated, Series: CS Series, 480 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.59 in Dia x 6.34 in L

Application

Indoor Dry Environment

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42

Features

Box terminal with hex soaring threaded slug, permits high clamping pressure on conductors without damaging strands
Heavy duty 2-piece external cord clamp provides maximum strain relief
Thermoplastic polyester interior provides heat resistance and impact strength
Oversized contacts minimize operating temperature
Black nylon contact nose, body contact carrier
Glass reinforced PET terminal retainer
Rynite cord clamp
Steel pressure screw zinc plate terminal screw, ground screw
302/304 stainless steel cord clamp screw
Brass contact spring, spring binding plate, ground contact
10 to 6 AWG stranded copper wire size
Super tough nylon
Withstands 2000 VAC minimum dielectric voltage
Cord mounted
6 AWG wire size
Non-NEMA rating

Specifications

Amperage Rating:	50 A
Color:	Black/White
Cord Diameter:	3/4 to 1-1/8 in
Country of Origin:	US
Dimensions:	2.59 in Dia x 6.34 in L
Enclosure:	IP20
Grade:	Industrial
Material:	Composite
Number of Poles:	3
Number of Wires:	4
Series:	CS Series
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	480 VAC
