CS8165C HWD

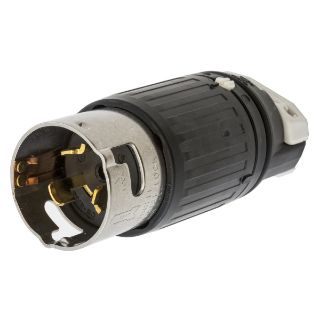

Picture of CS8165C HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
CS8165C
product.name:
CS8165C HWD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Extra Heavy Duty Grounding Standard Sized Male

Alternate Supplier #

Grainger - 3D328

Description

Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 3-Phase Extra Heavy Duty Grounding Standard Sized Male, Series: CS Series, 480 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, IP20 Enclosure, 0.83 to 1.25 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.59 in Dia x 6.38 in L

Application

Power Connection Applications

Standards

UL 498 | CSA C22.2 No. 42

Features

  • Supertough® nylon housing offers better impact qualities
  • Stainless steel shroud protects contacts and prevents mismating
  • Heavy duty 2-piece external cord clamp provides maximum strain relief
  • Box terminal with hex soaring threaded slug, permits high clamping pressure on conductors without damaging strands
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Glass reinforced PET blade holder, terminal retainer, terminal retainer
  • Brass blade
  • Bronze box terminal clamp
  • Stainless steel terminal screws
  • 302/304 stainless steel cord clamp screw, body holding screw
  • Non-NEMA rating

Specifications

Amperage Rating:50 A
Color:Black/White
Cord Diameter:0.83 to 1.25 in
Country of Origin:US
Dimensions:2.59 in Dia x 6.38 in L
Enclosure:IP20
Grade:Industrial
Material:Composite
Number of Poles:3
Number of Wires:4
Series:CS Series
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:480 VAC

Customers who bought this item also bought

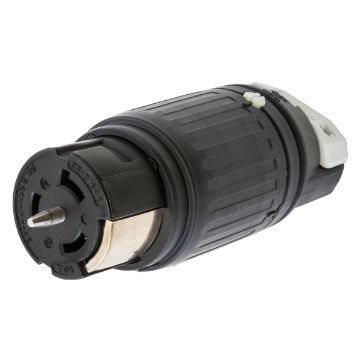

Picture of CS8164C HWD

CS8164C HWD

MFG: Hubbell Wiring Device-Kellems
MFG#:CS8164C
Info:Wiring Device-Kellems Twist-Lock® Insulgrip® CS8164C 3-Phase Female Non-Grounding Standard Heavy Duty Insulated Locking Connector, 480 VAC, 50 A, 3 Poles, 4 Wires, Black/White
$ -.--

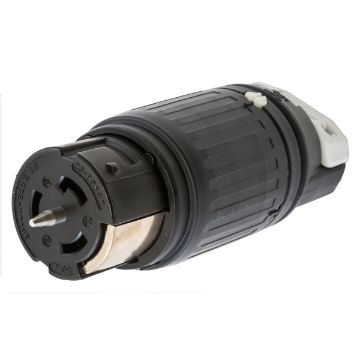

Picture of CS8364C HWD

CS8364C HWD

MFG: Hubbell Wiring Device-Kellems
MFG#:CS8364C
Info:Wiring Device-Kellems Twist-Lock® Insulgrip® CS8364C 3-Phase Female Non-Grounding Standard Heavy Duty Insulated Locking Connector, 250 VAC, 50 A, 3 Poles, 4 Wires, Black/White
$ -.--

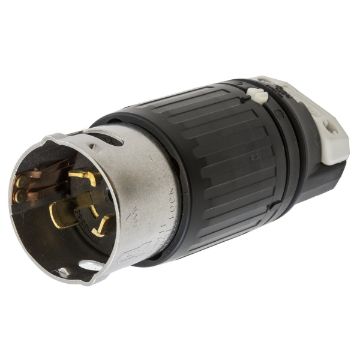

Picture of CS8365C HWD
