LLSRK030ID LIT

Name: LLSRK030ID LIT
Brand: Littelfuse
SKU: LLSRK030ID LIT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LLSRK030ID

product.name:

LLSRK030ID LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Current Limiting

Description

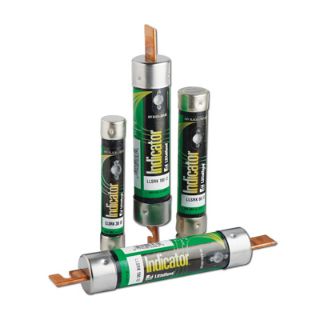

The all new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented Indicator™ technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses.

Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: LLSRK, Indicating, 30 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: RK1, Ferrule Terminal, Holder Mounting, Cartridge Body, Dual Element, Fiberglass, 13/16 in Dia x 5 in L Body

Application

All General Purpose Circuits, Motors, Transformers and Safety Upgrades Applications

Standards

UL 248-12 | UL File No. E81895 | CSA LR29862 | Federal Specification WF-1814 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

POWR-PRO™ performance
IEC type 2 "no damage" protection to IEC and NEMA type motor starters
This robust design withstands repeated surges within rated time delay without opening needlessly, eliminating downtime caused by power surges or equipment demands
Reduce down time the indicating window of the LLSRK_ID immediately identifies the open fuse, if the window is dark, the fuse has opened, It's that simple, maintenance personnel can immediately determine that there is an open fuse
Reduce fuse inventory the superior performance of the LLSRK_ID allows it to be used in a variety of applications, thus decreasing fuse inventory
Reduce nuisance opening - indicator fuses offer superior time delay and cycling characteristics, which can lengthen fuse life
200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
Blown fuse indicator assembly
Granular quartz filling
Plated end caps
Precision formed short circuit element
Fiberglass reinforced pultruded body
Elastomeric silicone overload section

Specifications

Amperage Rating:	30 A
Body Size:	13/16 in Dia x 5 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200/20 kA
Material:	Fiberglass
Mounting Type:	Holder
Series:	LLSRK
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
