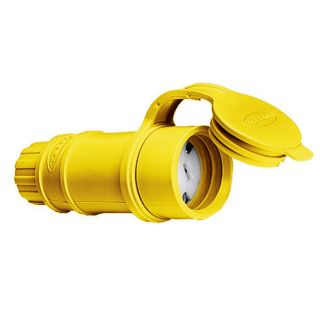

HBL15W47 HWD

Name: HBL15W47 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL15W47 HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL15W47

product.name:

HBL15W47 HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Female Grounding Insulated Standard Watertight

Alternate Supplier #

Grainger - 1X977

Description

Wiring Device-Kellems Elastogrip® Straight Blade Connector, Female Grounding Insulated Standard Watertight, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial Grade, IP20 Enclosure, 0.3 to 0.655 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 3 in L x 1.61 in W

Standards

UL 498 File No. E1706 | UL94 HB Flammability Rating | CSA C22.2 No. 42/280 | NEMA WD1/WD5 WD6

Features

#8-32 brass, multiple drive terminal screw
Copper alloy power contacts
Withstands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
18 to 12 AWG copper stranded or solid wire size
Integral weatherproofing shroud seals connection between plug and connector
Nylon compression nut keeps water and dust from getting into the body around the cord
14 to 12 AWG wire size
Cord mounted

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	0.3 to 0.655 in
Country of Origin:	US
Dimensions:	3 in L x 1.61 in W
Enclosure:	IP20
Grade:	Commercial/Industrial
Horsepower:	1/2 hp
Material:	Composite
NEMA Rating:	5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
