HBL430C9W HWD

Name: HBL430C9W HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL430C9W HWD
Availability: OutOfStock

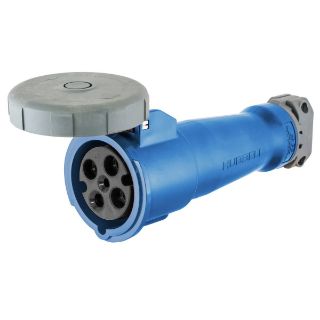

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL430C9W

product.name:

HBL430C9W HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Heavy Duty Insulated Standard Watertight

Description

Wiring Device-Kellems Pin and Sleeve Connector, 3-Phase Female Heavy Duty Insulated Standard Watertight, 250 VAC, 30 A, 3 hp, 3 Poles, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 4.27 in Dia x 9.05 in L

Application

High Ampacity Connection Applications

Standards

UL 498 | CSA C22.2 No. 182.2 | IEC 309-1/309-2

Features

12 to 8 AWG copper wire size, 3/8 to 1-1/4 in cord clamp range
High impact thermoset contact carrier and retainer
300 series stainless steel terminal screws
Solid neoprene gaskets, solid neoprene grommet/glands
Rynite SST35 cord clamps, SST35 cover arm, SST35 cover
Stainless steel (17-1 type) arm spring, stainless steel (300 series) cord clamp screws
Nickel plated brass clamp nut, nickel plated brass cover screw/rivet
Polycarbonate rotating sealing disc
Brass ground/phase sleeve, beryllium copper multi-contact insert with silver plating pin/sleeve spring
Withstands 3000 VAC minimum dielectric voltage
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
5000 connect and disconnect cycles with load for 16/20 A, 1000 cycles with load and 1000 cycles without load for 30/32/60/63 A and 250 cycles with load and 250 cycles without load for 100/125 A endurance
Per CSA C22.2 no 182.1/UL 1682 impact resistance, per CSA C22.2 no 182.1/UL 1682 cord grip retention
Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 and the harmonized European standards
Terminals identified in accordance with North American and IEC conventions, identification and ratings are a permanent part of the device housing product identification
Watertight per IEC 60309-1 moisture resistance
Every Hubbell® non-metallic pin and sleeve product is designed to meet the international standard IEC 60309-1 and IEC 60309-2, this device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service device description
Cord mounted
Non-NEMA rating

Specifications

Amperage Rating:	30 A
Color:	Blue
Country of Origin:	US
Dimensions:	4.27 in Dia x 9.05 in L
Enclosure:	IP67
Grade:	Industrial
Horsepower:	3 hp
Material:	Composite
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	250 VAC
