UCP207-23 TKN

Name: UCP207-23 TKN
Brand: Timken
SKU: UCP207-23 TKN
Availability: OutOfStock

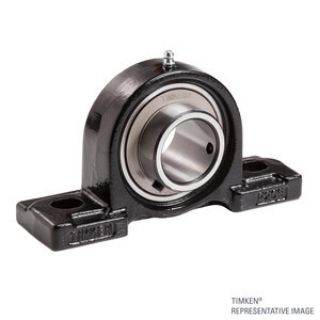

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

UCP207-23

product.name:

UCP207-23 TKN

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken

Description

Timken® U Series UC200 mounted ball bearings (housed units) feature Timken® U Series set screw locking (UC) style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.

2-Bolt Pillow Block | 36.513 mm 1.4375 in bore | Set Screw

Features

Suggested for industrial applications where normal loads are encountered
Compact one-piece housing with two-bolt mounting can be installed in any position and makes bearing replacement easy
Use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
Timken UCP series housed units feature the Timken set screw locking (UC) bearing insert.

Specifications

Bearing Material:	Bearing Steel
Bearing Type:	Mounted Ball Bearing
Bolt Center - (in):	5
Bolt Center - (mm):	127
Bolt Circle Diameter (in):	20.53
Bolt Circle Diameter (mm):	17
Bolt Size (in):	1/2
Bolt Size (mm):	M14
Bolt Spacing Maximum (in):	5.41338582677165
Bolt Spacing Maximum (mm):	137.5
Bolt Spacing Minimum (in):	4.58661417322835
Bolt Spacing Minimum (mm):	116.5
Bore Type:	Cylindrical
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Closure type:	Open
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard Industrial Series
Dynamic Load Rating:	25.7
End Type:	Open
Expansion Type:	Non-Expansion
Flange Thickness (in):	0.708661417322835
Flange Thickness (mm):	18
Housing Configuration:	2-Bolt Pillow Block
Housing Material:	Cast Iron
Housing Style:	2-Bolt Pillow Block
Internal Clearance:	CN
Length Through Bore - in:	1.689
Length Through Bore - mm:	42.9
Load Rating UOM:	kN
Locking Type:	Set Screw
Lubrication Hole/Groove:	YES
Material - Rolling Elements:	Steel
Material Insert Bearing:	Steel
Mounting Type:	2-Bolt Pillow Block
Nominal Bolt Center to Center (in):	5
Nominal Bolt Center to Center (mm):	127
Number of Mounting Holes:	2
Outer Diameter Type:	Spherical
Overall Height (in):	3.75
Overall Height (mm):	95
Overall Length (in):	6.5625
Overall Length (mm):	167
Overall Width (in):	1.9375
Overall Width (mm):	29.2
Relubricatable:	yes
Rolling Element:	Ball Bearing
Row Type:	Single Row
Shaft Centerline (in):	1.875
Shaft Centerline (mm):	47.6
Shaft Size (in):	1.4375
Shaft Size (mm):	36.513
Static Load Rating:	15.4
