MPDBC6869 FER

Name: MPDBC6869 FER
Brand: Mersen
SKU: MPDBC6869 FER
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

MPDBC6869

product.name:

MPDBC6869 FER

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Mersen

Type

Hinged

Alternate Supplier #

Grainger - 25CC03

Description

Mersen Safety Cover, Hinged, For Use With: MPDB Large Series Open Style Power Distribution Block, Specifications: 600 VAC, Snap-On Mount, Polycarbonate

Application

Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications

Standards

RoHS Compliant | UL Listed File No. E352417 | CSA Class 6228-01

Features

Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only and all 1-piece tin-plated
Insulators are virtually unbreakable, made of glass filled polycarbonate, see-through hinged safety covers are optional and provide a greater degree of safety and shock resistance where required, hinged covers can be installed without tools
1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
Polycarbonate safety covers provide dead-front protection
One cover is needed for each pole
Each cover has a test probe hole in the center for circuit checking

Specifications

Country of Origin:	MX
Material:	Polycarbonate
Specifications:	600 VAC, Snap-On Mount
Suitable For Use With:	MPDB Large Series Open Style Power Distribution Block

Customers who bought this item also bought

LAM2A250-38-6Y PAN

MFG#:LAM2A250-38-6Y

Info:Panduit® Pan-Lug™ LAM2A250-38-6Y 2-Barrel Mechanical Connector Lug, 6 AWG to 250 kcmil Aluminum/Copper/Stranded Conductor, 3/8 in Stud, 1 Bolt Holes, Aluminum

$ -.--

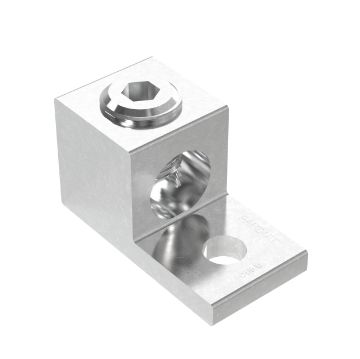

LAMA350-38-QY PAN
