LAMA350-38-QY PAN

Name: LAMA350-38-QY PAN
SKU: LAMA350-38-QY PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

LAMA350-38-QY

product.name:

LAMA350-38-QY PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1- Barrel

Description

Panduit® offers a broad variety of mechanical lugs, splices and split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug™ mechanical connectors provide quality performance, ease of installation and lowest installed cost. Pan-Lug™ mechanical connectors include split bolt connectors, copper mechanical lugs, aluminum mechanical lugs and aluminum multi-tap connectors with clear PVC insulation. Products are available in stamped and formed, extruded and cast varieties of multiple barrel and tongue configurations to provide solutions for diverse power and grounding needs. Panduit offers a wide assortment of Pan-Lug™ power and grounding connectors to meet customer needs and today's application requirements.

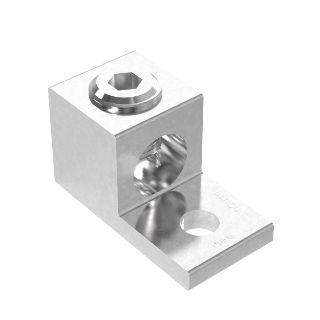

Panduit® Pan-Lug™ Mechanical Connector Lug, Type LAMA Single Barrel, Stranded Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1.12 in L x 1.13 in W x 0.25 in THK Tongue, 600 VAC, Specifications: 1.13 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 2-1/4 in L x 1-1/4 in H Dimensions

Application

Power and Grounding Applications

Standards

Features

Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
Tin plated to inhibit corrosion
Compact design saves space
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector

Specifications

Conductor Size:	6 AWG to 350 kcmil
Conductor Type:	Aluminum/Stranded Copper
Country of Origin:	IN
Dimensions:	2-1/4 in L x 1-1/4 in H
Finish:	TiN Coated
Material:	Aluminum
Number of Bolt Holes:	1
Series:	LAMA
Specifications:	1.13 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.12 in L x 1.13 in W x 0.25 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
