HS5F3AS SHD

Name: HS5F3AS SHD
Brand: SolaHD (Emerson)
SKU: HS5F3AS SHD
Availability: InStock

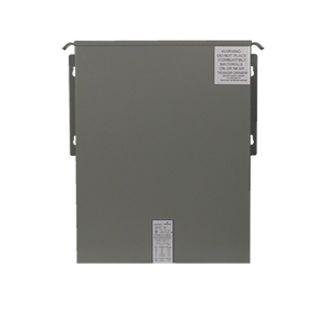

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

HS5F3AS

product.name:

HS5F3AS SHD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Transformers, Low Voltage, Single Phase, Shielded, KVA Rating: 3 KVA, Primary Voltage: 240 x 480 VAC @ 60 Hz, Secondary Voltage/Hz: 120/240 AC @ 60HZ, Taps: 115 Degree C, Winding Material: Mounting Holes in the Enclosure, Mounting: UL-3R, Enclosure Type:

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R
Frequency Rating:	60 Hz
Height:	12 in
Input Voltage:	240 x 480 Volt Primary VAC
KVA Rating:	3
Length:	9 in
Maximum Input Current:	15.6/31.3 A
Maximum Output Current:	31.3/62.5 A
Number of Phases:	1
Output Voltage:	120/240 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	7.5 kW
Width:	14 in
