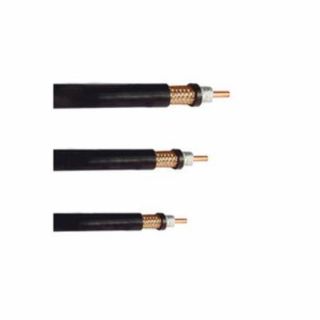

C40M40-40-050 PRS

Name: C40M40-40-050 PRS
Brand: Prosoft Technology
SKU: C40M40-40-050 PRS
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

C40M40-40-050

product.name:

C40M40-40-050 PRS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

ProSoft Technology

Type

Type LMR® 400

Description

ProSoft Technology supplies cables that provide the lowest attenuation and are pre-cut and assembled with connectors at the factory to ensure ultimate reliability and customer satisfaction.

ProSoft Technology Cable, Type LMR® 400, Series: C40M, 2500 VDC, 50 ft Length, N Plug End Style, Polyethylene Jacket, Black Jacket, -40 to 185 deg F

Application

For jumper assemblies in wireless communication systems and antenna feed runs less than 100 ft

Features

With a 1 in minimum bend radius, LMR® 400 cable can be easily routed into and through tight spaces without kinking flexible
LMR® 400 has the lowest loss of any RG8/RG13 type cable
This is achieved through the use of a high velocity gas-injected closed cell foam dielectric, and bonded aluminum tape outer conductor
The bonded aluminum tape outer conductor is overlapped to provide 100% coverage, resulting in less than 90 dB RF shielding and excellent interference immunity
The intimately bonded structure and foam dielectric of LMR® cables provide excellent phase stability over temperature and with bending
The high velocity dielectric results in superior phase stability as compared with solid and air spaced dielectric cables
-40 to 185 deg F installation temperature range
