C19M10-40-002 PRS

Name: C19M10-40-002 PRS
Brand: Prosoft Technology
SKU: C19M10-40-002 PRS
Availability: OutOfStock

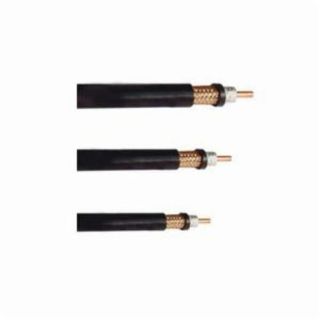

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

C19M10-40-002

product.name:

C19M10-40-002 PRS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LMR®

Type

Type LMR® 195

Description

ProSoft Technology supplies cables that provide the lowest attenuation and are pre-cut and assembled with connectors at the factory to ensure ultimate reliability and customer satisfaction. LMR® 195 Cables are ideal for jumper assemblies in wireless communication systems and short antenna feed runs.

LMR® Conversion Cable, Type LMR® 195, 1000 VDC, Aluminum Conductor, Polyethylene Jacket, Black Jacket, -40 to 85 deg C

Application

For jumper assemblies in wireless communication systems and short antenna feed runs

Features

With a 1/2 in minimum bend radius, the LMR® 195 cable is substantially more flexible than RG142 and very comparable to RG58
LMR® 195 boasts lower loss than other RG58/RG142 type cables
Achieved through the use of high velocity gas-injected closed cell foam dielectric, and bonded aluminium tape outer conductor
The UV protected black polyethylene jacket makes the cable rugged and resistant to the full range of outdoor environments
The bonded aluminium tape outer conductor is overlapped to provide 100% coverage, resulting in 0.90 dB RF shielding
The intimately bonded structure and foam dielectric of LMR® cables provide excellent phase stability over temperature and with bending
The high velocity dielectric results in superior phase stability as compared with RG58 and RG142 solid dielectric cables
Industrial data communications experts who understand your protocols, devices, and applications
29.9 dB/100 ft attenuation at 5800 MHz, 18.8 dB/100 ft attenuation at 2450 MHz, 11.2 dB/100 ft attenuation at 915 MHz
-70 to 85 deg C storage temperature range, -40 to 85 deg C installation temperature range
LMR® 195 type Conversion Cable with reverse polarity, right angle RP SMA male type connector on radio side and standard N male plug connector on antenna side
Converts SMA connector type to N plug type and normally attaches to enclosure side bulkhead lightning protector
