BSN18-C PAN

Picture of BSN18-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
BSN18-C
product.name:
BSN18-C PAN
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Standard

Description

Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit® Pan-Term® Butt Splice, Loose Piece Standard, Series: BSN, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1.15 in Length, Brazed Seam/Standard Barrel, 0.13 in ID x 0.2 in OD Barrel, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.115 in Dia Maximum Nylon Insulation, 221 deg F, Copper/Nylon, Red, Tin Plated

Application

For limited space applications

Standards

ARRA Compliant | BAA Compliant | CSA C22.2 File No 65, File No LR31212 | RoHS Compliant | UL 486C | UL 587H File No E52164 | UL 94-HB Flammability Rated | Buy American Act Compliant

Features

  • Designed to splice two solid or stranded wires together to repair or lengthen wires
  • Butted configuration provides low profile for limited space applications
  • Internal wire stop assures proper length of insertion into terminal barrel
  • Internal wire stop assures proper insertion length for a quality connection
  • Brazed seem protects the terminal barrel from splitting during the crimp process

Specifications

Barrel Size:0.13 in ID x 0.2 in OD
Barrel Type:Brazed Seam/Butted/Standard
Color:Red
Conductor Size:22 to 18 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Finish:TiN Coated
Length:1.15 in
Material:Copper
Series:BSN
Specifications:9/32 in L Wire Strip, 0.115 in Dia Maximum Nylon Insulation
Temperature Rating:221 deg F
Voltage Rating:600 VAC

Customers who bought this item also bought

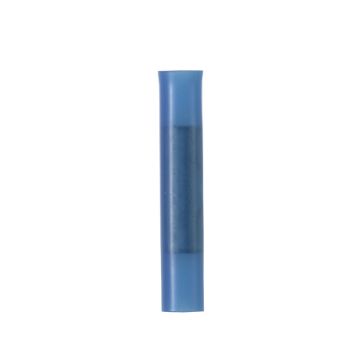

Picture of BSN14-C PAN
