BSN14-C PAN

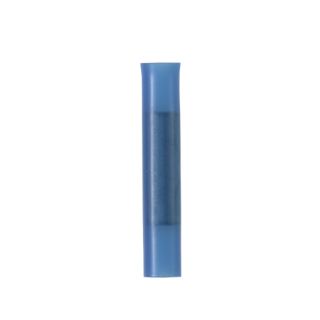

Picture of BSN14-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
BSN14-C
product.name:
BSN14-C PAN
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Standard

Description

Panduit® Pan-Term™ Butt Splice, Type BSN Loose Piece, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, 1.15 in Length, Brazed Seam/Butted/Standard Barrel, 0.15 in ID x 0.2 in OD Barrel, 600 VAC, 9/32 in L Wire Strip, 0.15 in Dia Maximum Nylon Insulation, 221 deg F, Copper, Blue, TiN Coated

Application

For limited space applications

Standards

ARRA Compliant | BAA Compliant | CSA C22.2 File No 65, File No LR31212 | RoHS Compliant | UL 486C | UL 587H File No E52164 | UL 94-HB Flammability Rated | Buy American Act Compliant

Features

  • Designed to splice two solid or stranded wires together to repair or lengthen wires
  • Butted configuration provides low profile for limited space applications
  • Internal wire stop assures proper length of insertion into terminal barrel
  • Internal wire stop assures proper insertion length for a quality connection
  • Brazed seem protects the terminal barrel from splitting during the crimp process

Specifications

Barrel Size:0.15 in ID x 0.2 in OD
Barrel Type:Brazed Seam/Butted/Standard
Color:Blue
Conductor Size:16 to 14 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Finish:TiN Coated
Length:1.15 in
Material:Copper
Series:BSN
Specifications:9/32 in L Wire Strip, 0.148 in Dia Maximum Nylon Insulation
Temperature Rating:221 deg F
Voltage Rating:600 VAC
