0312003.VXP LIT

Name: 0312003.VXP LIT
Brand: Littelfuse
SKU: 0312003.VXP LIT
Availability: OutOfStock

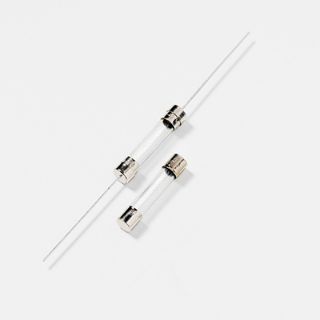

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

312003P

product.name:

0312003.VXP LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Type 3AG Fast Acting

Description

The 3AG fast acting fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Littelfuse® POWR-GARD® Cartridge Fuse, Type 3AG Fast Acting, Series: 312, Non-Indicating, 3 A, 250 VAC, 10 kA Interrupt, 4 hr, 1 hr, 5 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

For supplementary protection in appliances or utilization equipment to provide individual protection for components or internal circuits

Standards

Features

Lead-free
-55 to 125 deg C operating temperature
Nickel plated brass cap
5 s maximum at 200%, 4 hr minimum at 100% and 1 hr maximum at 135% opening time
10 kA at 125 VAC interrupting rating

Specifications

Amperage Rating:	3 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cartridge
Country of Origin:	MX
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	10 kA
Material:	Glass
Mounting Type:	Holder
Response Time:	4 hr, 1 hr, 5 s
Series:	312
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
