Actual Product May Vary From Image

ZARN4090-TV-A INA

Name: ZARN4090-TV-A INA
Brand: INA
SKU: ZARN4090-TV-A INA
Availability: OutOfStock

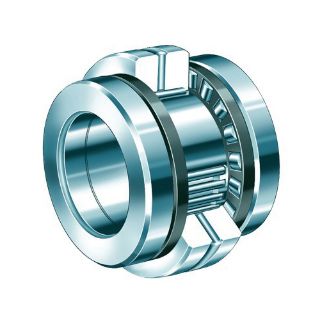

INA ZARN4090-TV-A Double Direction Needle Roller/Axial Cylindrical Roller Bearing, 40 mm Dia Bore, 90 mm OD, 75 mm W, 315000 N Load

Manufacturer: INA

Manufacturer part number: ZARN4090-TV-A

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Type

Double Direction

Description

Needle roller/axial cylindrical roller bearings comprise an outer ring with radial and axial raceways, two shaft locating washers, an inner ring, a radial needle roller and cage assembly and two axial cylindrical roller and cage assemblies. The bearings are available in versions for screw mounting and not for screw mounting.

INA Needle Roller/Axial Cylindrical Roller Bearing, Double Direction, Series: Heavy ZARN, 40 mm Bore, 90 mm OD, 75 mm Width, 315000 N Load, Polyamide Cage, 1200 rpm Grease/3700 rpm Oil Maximum, -30 to 120 deg C

Features

Not for screw mounting
Without fixing hole
117000 N dynamic/315000 N static radial, 38000 N dynamic/74000 N static axial

Specifications

Bore Diameter:	40 mm
Cage Material:	Polyamide
Country of Origin:	DE
Load Capacity:	315000 N
Maximum Speed:	1200 rpm Grease/3700 rpm Oil
Outside Diameter:	90 mm
Series:	Heavy ZARN
Temperature Rating:	-30 to 120 deg C
Width:	75 mm
