WRX50 NER

Name: WRX50 NER
Brand: Appleton
SKU: WRX50 NER
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

WRX50

product.name:

WRX50 NER

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Description

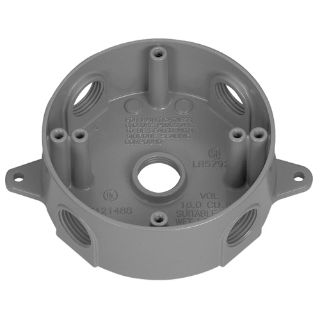

Appleton® ETP™ Weatherproof Round Box, 5 Outlets, 1/2 in Hub, 4.31 in Dia, Round, NEMA FB-1/OS-1, Surface Mount, Vertical Mount, 16 cu-in, Die Cast Zinc, Powder Coated, Gray, 5.51 in W x 1.62 in D

Application

Used in branch circuit wiring for wet, damp or dry locations

Standards

UL 514A File No. E2527 | CSA C22.2 No. 18.1 | NEMA FB-1/OS-1

Features

Rugged continuous and seamless die cast construction prevents entry of dirt, dust and moisture
Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
Smooth, accurately tapped hubs prevent wire abrasion
Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
Continuous box and cover compression ensure complete sealing at the gasket to prevent entry of moisture
Powder coating is applied for uniform cosmetic coating and weatherproof durability

Includes

Closure Plugs, Ground Screw and Mounting Lugs

Specifications

Capacity:	16 cu-in
Color:	Gray
Country of Origin:	IN
Diameter:	4.31 in
Dimensions:	5.51 in W x 1.62 in D
Enclosure Type:	NEMA FB-1/OS-1
Finish:	Powder Coated
Hub Size:	1/2 in
Material:	Die Cast Zinc
Mounting Orientation:	Vertical
Mounting Type:	Surface
Number of Outlets:	5
Shape:	Round
