WHD1 NER

Name: WHD1 NER
Brand: Appleton
SKU: WHD1 NER
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

WHD1

product.name:

WHD1 NER

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Self-Closing Weatherproof

Description

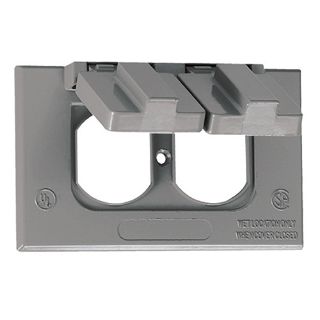

Appleton® ETP™ Outlet Box Cover, Self-Closing Weatherproof, 1 Gangs, 4.56 in Length, 2.81 in Width, Rectangle Shape, Duplex Receptacle/Switch Cover, Horizontal Mounting, Surface Mounting, Die Cast Aluminum, Polyester Powder Coated, Gray

Application

For branch circuit wiring in wet, damp or dry locations and duplex receptacle or switch

Standards

CSA C22.2 18.1, 250 | NEMA OS-1, WD-1 | UL 514A, 1598, E53330

Features

Rugged continuous and seamless die-cast construction prevents entry of dirt, dust and moisture
Polyester powder coating is applied for uniform cosmetic coating and weatherproof durability
Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
Smooth, accurately tapped hubs prevent wire abrasion
Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
Photocells and lampholders are supplied with long leads (4 in from the end of the knuckle) to facilitate wiring
Lighting fixtures are factory assembled and fully gasketed to ensure fast and easy installation
Lighting fixtures are individually boxed, labeled and bar coded for ease of handling and identification
Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry
Lockable covers and covers with integral devices are offered

Includes

Gasket and Mounting Hardware

Specifications

Color:	Gray
Country of Origin:	IN
Cover Type:	Duplex Receptacle/Switch
Finish:	Polyester Powder Coated
Length:	4.56 in
Material:	Die Cast Aluminum
Mounting Orientation:	Horizontal
Mounting Type:	Surface
Number of Gangs:	1
Shape:	Rectangle
Width:	2.81 in
