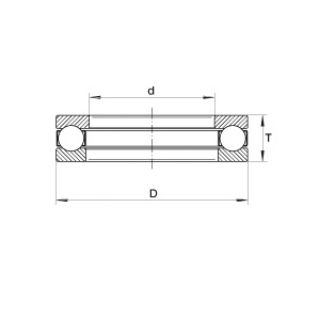

Picture of W3/4 INA

Actual Product May Vary From Image

W3/4 INA

INA W3/4 Axial Deep Groove Ball Bearing, 3/4 in Dia Bore, 1.531 in OD, 1 Rows, 5/8 in W, 3930 lb Dynamic/6740 lb Static Load

Manufacturer: INA

Manufacturer part number: W3/4

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

INA Axial Deep Groove Ball Bearing, Series: W Series, 3/4 in Bore Dia, 1.531 in Outside Dia, 1 Rows, 5/8 in Width, Separable Face, Single Thrust Direction, 3930 lb Dynamic/6740 lb Static, Steel Bearing, 9500 rpm Maximum

Features

Medium cross section
Grooved race
Separable axial contact
Speed limit shown is for oil lubrication

Specifications

Bearing Material:	Steel
Bore Diameter:	3/4 in
Face Type:	Separable
Load Capacity:	3930 lb Dynamic/6740 lb Static
Maximum Speed:	9500 rpm
Number of Rows:	1
Outside Diameter:	1.531 in
Series:	W Series
Thrust Direction:	Single
Width:	5/8 in
