W214PP TKN

Name: W214PP TKN
Brand: Timken
SKU: W214PP TKN
Availability: OutOfStock

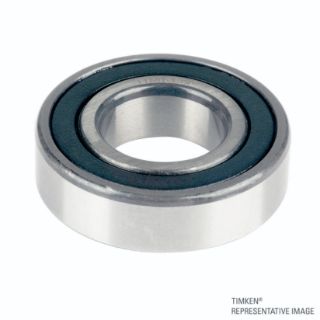

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

W214PP

product.name:

W214PP TKN

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken

Description

Timken supplies a full range of product in the world’s most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

Deep Groove Radial Ball Bearing | 70 mm 2.8 in Bore | 125 mm 4.9 in OD

Features

Super finished raceways
Quiet operations
Light 200 Series have a close dimensional balance between bore, outside diameter and width making them well-suited for applications with light to medium loads and high speed
Wide Rings

Specifications

Bearing Material:	Steel
Bearing Type:	Ball Bearing
Bore Size (ID) - in:	2.7559
Bore Size (ID) - mm:	70
Bore Type:	Straight
Closure (Seal) type:	2 Pop-in Seal
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	21200
Fillet Radius - Inch:	0.059
Fillet Radius - Millimeter:	2
Inner Ring Width - Inch:	1.5625
Inner Ring Width - Millimeter:	40
Internal Clearance:	P
Load Rating UOM:	LB
Lubrication Hole/Groove:	No
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/ball/deep-groove/
Material - Rolling Elements (Ball or Roller):	Ball
Maximum Operating RPM (Grease):	3571.42857142857
Maximum Operating RPM (Oil):	3571.42857142857
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	4.9213
Outer Diameter - mm:	125
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	1.5625
Outer Ring Width - Millimeter:	40
Overall Width - in:	1.5625
Overall Width - mm:	40
Precision class:	ABEC1
Relubricatable:	No
Retainer Material:	Cold Rolled Steel
Rolling Element:	Ball
Row Type:	Single
Self Aligning:	No
Series:	200
Static Load Rating:	15800
