Home / VS-AVT-C02-L03 PAN

VS-AVT-C02-L03 PAN

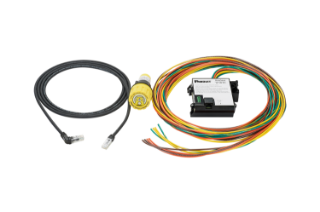

Picture of VS-AVT-C02-L03 PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
VS-AVT-C02-L03
product.name:
VS-AVT-C02-L03 PAN
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Description

Panduit® VeriSafe™ Absence of Voltage Tester, 3 ft Lead Length, 600 VAC/VDC Maximum Measurable Voltage, LED Display, 3.6 VDC AA Lithium-Ion Battery, 50/60 Hz Frequency, Environmental Conditions: 32 to 140 deg F Operating Temperature, 5 to 95% Non-Condensing Humidity, 3 deg Pollution, NEMA 1/12/4/4X/IP20/IP66 Enclosure, 3.96 in L x 1.57 in W x 4.52 in H Dimensions

Application

For 1, 2 or 3-phase AC or DC systems

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CAN/CSA C22.2 No.160 | CSA C22.2 File No.94.2-15/61010-2-030-12/61010-1/14-13/213 | IEC 60529/61508-1/61508-2/61010-1/61508-3/61010-2-030 | ICES-001 | EN/AS/NZS/CISPR 61326-1/55011 | EN 55011/61000-6-2 | FCC Part 15B/Part 15 Subpart B | ISA 12.12.01 | Class I, Division 2, Groups A, B, C, D | Class I, Zone 2, Groups IIA, IIB and IIC | UL 1436/50E/508/61010-1/61010-2-030/1436

Features

  • Improved safety and risk reduction, determine voltage status BEFORE equipment is accessed prevents direct exposure to electrical hazards
  • Increased productivity easy to use, initiate test with the push of a button no additional tools required provides visual alert to abnormal power conditions
  • Simplified process for easier compliance test sequence based on the steps in NFPA 70E for verification of an electrically safe work condition automated test helps reduce operator errors
  • Reliable results fail-safe design with active indications safety functions meet SIL 3 per IEC 61508-1
  • Flexible applications designed for testing three-phase circuits up to 600 VAC Install on line or load side of electrical disconnect detects absence of AC and DC voltage
  • Multiple environments all VeriSafe™ absence of voltage testers are tested to NEMA 4X, IP66, IP67 VS-AVT2 parts are rated to Class 1 Division 2 and Class 1 Zone 2 environments
  • VeriSafe™ AVT device automates and simplifies the process of absence of voltage verification testing

Includes

Industrial 3.6 V Lithium AA Battery

Specifications

Battery:3.6 V AA Lithium-Ion
Country of Origin:TW
Dimensions:3.96 in L x 1.57 in W x 4.52 in H
Display Type:LED
Enclosure Type:NEMA 1/12/4/4X/IP20/IP66
Environmental Conditions:32 to 140 deg F Operating Temperature, 5 to 90% Non-Condensing, 3 Pollution Degree
Frequency Rating:50/60 Hz
Lead Length:3 ft
Maximum Measurable Voltage:600 VAC/VDC
Power Supply:Battery
