USI-024QC FSG

Name: USI-024QC FSG
Brand: Federal Signal
SKU: USI-024QC FSG
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Federal Signal

Manufacturer part number:

USI-024QC

product.name:

USI-024QC FSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Federal Signal

Description

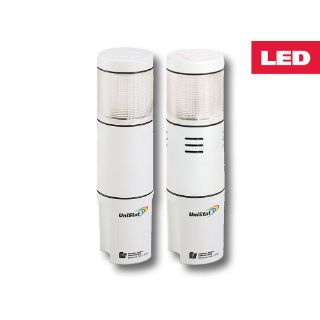

The UniStat™ is a LED (light emitting diode) based, multi-color, single-high status indicator. Using the latest die level led technology, this unique status indicator can produce three colors (amber, green and red) or four colors (amber, blue, green and red) from a single light source. Ideal for OEM applications, the UniStat™ is compact, attractive and easy to install. The low profile UniStat™ produces as much light as much larger devices. The UniStat™ offers a choice of four integrated flash patterns steady burn, slow flash, strobe flash and SimuStrobe™. SimuStrobe™ simulates the attention-getting flash rate-of a strobe light but with a much more color-rich output. The user can choose a total of 12 possible flash/color combinations in the tri-color models and 16 in the quad color models.

Federal Signal UniStat™ Status Indicator Stack Light, Series: USI, 24 VDC, 0.1 A, 1 Lights, LED Lamp, Clear, 50000 hr Average Life, Surface Mount, 4X/IP66, 32 to 104 deg F, Specifications Met: cUL Listed|UL Listed, Polycarbonate, 2.2 in W x 2.2 in D x 7.8 in H

Application

Indoor Applications

Standards

BAA Compliant | cUL Listed | UL Listed

Features

Vibration resistant LED light source
PLC compatible
Type 1 with sounder
Surface mount and integrated 3/4 in NPT pipe mount
Four integrated flash patterns
3/4 in NPT pipe/surface mounting

Specifications

Amperage Rating:	0.1 A
Average Life:	50000 hr
Color:	Clear
Country of Origin:	US
Dimensions:	2.2 in W x 2.2 in D x 7.8 in H
Lamp Type:	LED
Material:	Polycarbonate
Mounting Type:	Surface
NEMA Rating:	4X/IP66
Number of Lights:	1
Series:	USI
Specifications Met:	cUL Listed\|UL Listed
Temperature Rating:	32 to 104 deg F
Voltage Rating:	24 VDC
