UNY100NR APN

Name: UNY100NR APN
Brand: Appleton
SKU: UNY100NR APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

UNY100NR

product.name:

UNY100NR APN

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Dust-Ignitionproof Explosionproof

Alternate Supplier #

Grainger - 10U879

Description

Appleton® UNY, UNF, and UNL explosionproof and dust-ignitionproof unions are used for joining conduit and connecting conduit to enclosures. They facilitate modifications and permit the removal of enclosures without turning or removing conduit. They are also available as expansion unions, which compensate for the expansion and contraction of conduit.

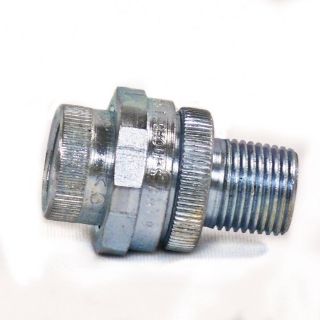

Appleton® UNILETS® Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNY, 1 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Steel, Zinc Electroplated, 2 in OD x 2.62 in L

Application

For connecting conduit to enclosure

Standards

UL 886 | UL 1203 | UL File No. E10444 | Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class III | CSA C22.2 No. 25/30 | CSA 065181

Features

Smooth, rounded integral bushing in each hub to protect conductor insulation
Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces
Facilitates modifications, permits removal of enclosures without turning or removal of conduit
Nipple not removable
Male/female threaded connection

Specifications

Country of Origin:	MX
Dimensions:	2 in OD x 2.62 in L
Finish:	Zinc Electroplated
Material:	Steel
Series:	UNY
Size:	1 in
Suitable For Use With:	IMC/Threaded Rigid Metallic Conduit
