TP700H300 GAT

Name: TP700H300 GAT
Brand: Gates
SKU: TP700H300 GAT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates

Manufacturer part number:

TP700H300

product.name:

TP700H300 GAT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Gates

Alternate Supplier #

92463515

Description

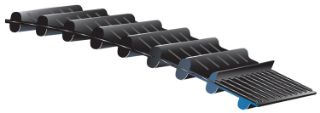

PowerGrip™ Twin Power™ Timing Belts are suitable for all industrial serpentine applications that require rotation reversal in some driven shafts. Twin Power belts have precision-formed elastomeric teeth on both sides to provide high-loading capacity synchronization from both driving surfaces. Due to its double and directly opposite teeth, Twin Power synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility. Gates PowerGrip Twin Power belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity.

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation. Neoprene body provides protection against grime, grease, oil and moisture. Free of lubrication and maintenance. Gates® Twin Power® belts have nylon facing on both tooth surfaces to provide equal load carrying capabilities on either side of belt. Precision formed elastomeric teeth and body. Wear resistant nylon fabric on both tooth sides to provide equal load carrying capabilities on either side of belt. High efficiency, non-slip positive drive with a high tooth jump resistance.

Specifications

Belt Back Side:	Notched
Belt Height (in):	0.24
Belt Height (mm):	6
Belt/Slab:	Belt
Color:	Black
Cord Material:	Fiberglass
Country of Origin:	US
End:	Endless
Fabric Material:	Nylon Teeth
GC Base Product:	PowerGrip® Twin Power® Timing Belts - 1/2" Pitch (.500"/H)
Harmonized Tariff Code:	4010.36.4500
Length Pitch (in):	70
Length Pitch (mm):	1778
Material:	Polychloroprene (Neoprene)
Max Temp (°C):	+100
Max Temp (°F):	+212
Min Temp (°C):	-30
Min Temp (°F):	-22
Number of Teeth:	140
Pitch (in):	0.5
Pitch (mm):	12.7
Proposition 65:	NO
Section:	H
Sided:	Double Sided
Sprock Comptab:	PowerGrip GT
Standard Width:	YES
Stat Conductive:	No
Tooth Form:	Trapezoidal Design
Width (in):	3
Width (mm):	76
