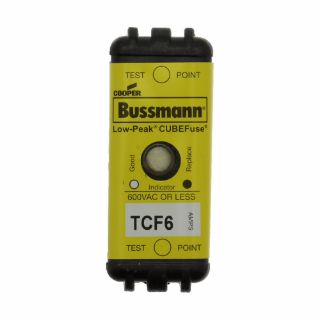

TCF6 BSF
TCF6 BSF
Actual Product May Vary From Image
Product Details
Manufacturer:
Bussmann
Manufacturer part number:
TCF6
product.name:
TCF6 BSF
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Expected Leadtime 38 days
Estimated dates are contingent upon manufacturer stock.
Status
Price on Request
Add to compare list
Description
Brand Name
Bussmann
Type
Finger Safe Indicating
Alternate Supplier #
Grainger - 2AAN5
Description
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution requiring up to 70% less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
Bussmann CUBEFuse™ Low-Peak™ Time Delay Fuse, Finger Safe Indicating, Series: TCF, 6 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, 3.01 in L x 1 in H Body Size
Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Industrial Control, Machinery Disconnects and Required Finger safe systems Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory
Standards
CE Certified | CSA 1422- 02 | RoHS Compliant | UL File No. 53787 | UL File No. E4273 | UL Guide JFHR
Features
The world's first finger safe power fuse system
Smallest footprint of any class fuse including class J, CC, T and RK
Meets class CF and class J time delay electrical performance requirements
The indicating version features easyID™ open fuse technology for faster troubleshooting and reduced downtime
Faster response to damaging faults to help reduce destructive thermal and magnetic forces
True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
High interrupt rating to safely interrupt faults up to 300 kA
No venting of arc or molten metal and gases during opening
Robust cycling and inrush current withstand
Low let through currents under fault conditions
Provides type 2 "no damage" in protection for IEC® motors starters when properly sized
Easy selective co-ordination with any other Cooper Bussmann Low-Peak™
Class CC, L/J/RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
35 mm DIN rail mounting
300 kAIC at 600 VAC and 100 kAIC at 300 VDC interrupt rating
10 s at 500% response time
Specifications
Amperage Rating:
6 A
Body Size:
1.88 in L x 0.75 in W x 1 in H
Body Type:
Square Blade
Class:
CF
Country of Origin:
CN
Element:
Dual
Interrupt Rating:
100/300 kA
Material:
Glass Filled Polyethersulfone
Mounting Type:
Chassis/DIN Rail
Response Time:
10 s at 500%
Series:
TCF
Terminal Type:
Blade
Voltage Rating:
600 VAC/300 VDC
Customers who bought this item also bought
V-Belts
A67 GAT
MFG:
Gates
MFG#:
A67
Info:
Hi-Power™ II
$ -.--
excluding
shipping
Register

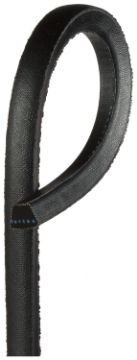

V-Belts
