TC815/0-5-HLA INA

Name: TC815/0-5-HLA INA
Brand: INA
SKU: TC815/0-5-HLA INA
Availability: InStock

TC815/0-5-HLA INA

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

TC815/0-5-HLA

product.name:

TC815/0-5-HLA INA

CBT Inventory

367

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

INA

Type

Single Direction

Description

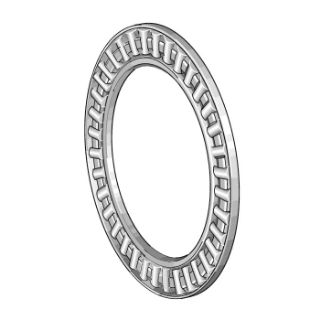

Axial needle roller bearings are construction units consisting of axial needle roller and cage assembles and thrust bearing washers with centering spigots. They can be combined with drawn cup needle roller bearings with open ends, drawn cup needle roller bearings with closed ends and needle roller bearings. The running surface for the needle roller and cage assembly must be hardened and ground.

INA Axial Needle Roller and Cage Assembly, Single Direction, Series: TC Series, 1/2 in Bore, 0.938 in OD, 0.078 in Width, 1910 lb Dynamic/5300 lb Static Load, Steel, 15800 rpm Maximum

Standards

ABMA 21.2-1988

Features

Suitable for combination with axial bearing washers TWA
0 to 5 micron needle sort

Specifications

Bore Diameter:	1/2 in
Country of Origin:	US
Load Capacity:	1910 lb Dynamic/5300 lb Static
Material:	Steel
Maximum Speed:	15800 rpm
Outside Diameter:	0.938 in
Series:	TC Series
Width:	0.078 in
