Actual Product May Vary From Image

TC511 NER

Name: TC511 NER
Brand: Appleton
SKU: TC511 NER
Availability: OutOfStock

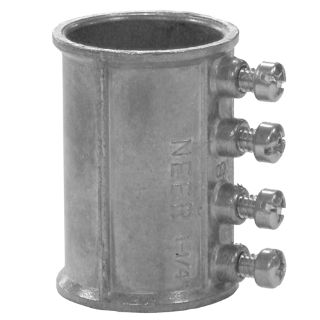

Appleton® NEER™ TC-511 TC-500 Straight Set Screw Coupling, 1/2 in, For Use With EMT Conduit, Die Cast Zinc

Manufacturer: Appleton

Manufacturer part number: TC-511

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Type

Straight

Description

Appleton® offer NEER™ zinc set screw connectors and couplings. TC-500 couplings are used to join lengths of steel EMT for concretetight or dry location applications. TC-500 connectors are used to secure and terminate steel EMT to knockouts in concretetight or dry location applications.

Appleton® NEER™ Set Screw Coupling, Straight, Series: TC-500, 1/2 in Size, For Use With: EMT Conduit, Die Cast Zinc, Metallic, 1.05 in OD x 1.5 in L Dimensions

Application

To join lengths of steel EMT for concretetight, dry or damp locations

Standards

UL 514B File No. E35001 | CSA 208044 | CSA C22.2 No. 18.3 | NEMA FB-1

Features

Pre-set/pre-staked set screws

Specifications

Color:	Metallic
Country of Origin:	IN
Dimensions:	1.05 in OD x 1.5 in L
Material:	Die Cast Zinc
Series:	TC-500
Size:	1/2 in
Suitable For Use With:	EMT Conduit
