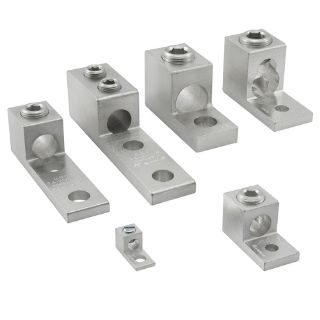

Actual Product May Vary From Image

TA-600 ILS

Name: TA-600 ILS
Brand: Ilsco
SKU: TA-600 ILS
Availability: OutOfStock

ILSCO® ClearChoice® TA-600 1-Conductor Dual Rated Mechanical Terminal Lug, 2 AWG to 600 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy

Manufacturer: Ilsco

Manufacturer part number: TA-600

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

ILSCO®

Type

1-Conductor Dual Rated

Description

ILSCO® ClearChoice® Mechanical Terminal Lug, 1-Conductor Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 2 AWG to 600 kcmil Conductor, 3/8 in Stud, 1 Bolt Hole, 1.813 in L x 1.5 in W x 0.438 in THK Tongue, Straight Tongue, 2000 VAC, 1/2 in Hex, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 3.1875 in L x 1.5 in W x 1.563 in H

Application

Terminating Connector Applications

Standards

CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99

Features

Manufactured from high strength 6061-T6 aluminum alloy
Chamfered wire entry provides ease of installation
Provides low contact resistance
Ensures reliability for copper or aluminum conductors
1-stud
Suitable for use with either copper or aluminum conductors

Specifications

Conductor Size:	2 AWG to 600 kcmil
Conductor Type:	Aluminum/Copper
Country of Origin:	MX
Dimensions:	3.1875 in L x 1.5 in W x 1.563 in H
Finish:	Electro-Plated Tin
Material:	6061-T6 Aluminum Alloy
Number of Bolt Holes:	1
Series:	TA Series
Specifications:	1/2 in Hex
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.813 in L x 1.5 in W x 0.438 in THK
Tongue Type:	Straight
Voltage Rating:	2000 VAC
