SY7300-5U1 SMC

Name: SY7300-5U1 SMC
Brand: SMC
SKU: SY7300-5U1 SMC
Availability: OutOfStock

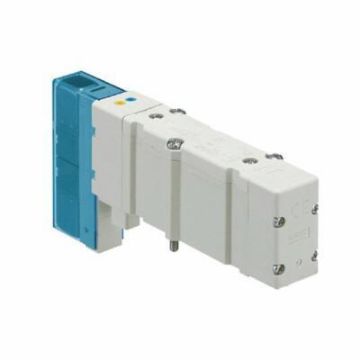

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

SY7300-5U1

product.name:

SY7300-5U1 SMC

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SMC®

Type

Closed Center Non-Polar

Description

SMC® has improved product performance and reliability with the redesigned SY Series valve. The SY3/5/7000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. Improved solenoid and spool design makes the New SY the most durable valve in the market. The valve is rated at 70 million cycles for the rubber seal and 200 million cycles for the metal seal. Side, top and bottom port/pipe directions are available to allow flexible installation. The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.

SMC® Solenoid Valve, Closed Center Non-Polar, Series: SY7000, 3/8 in, 0.1 to 0.7 MPa, -10 to 50 deg C, 3 Positions, Media: Air, Pilot Operated Actuator, Die-Cast Aluminum Body, Rubber Seal

Standards

CE Marked | IP67 Rated

Features

Air fluid
3-position closed center actuation
Base mounted
Rubber seal
Internal pilot
Standard pilot valve
24 VDC solenoid voltage
Light/surge voltage suppressor, non polar
Non-locking push style manual override
RC thread
Mounting screw, round head combination screw mounting option

Specifications

Actuator Type:	Pilot Operated
Body Material:	Die-Cast Aluminum
Media:	Air
Number of Positions:	3
Port Size:	3/8 in
Pressure Rating:	0.1 to 0.7 MPa
Series:	SY7000
Softgoods Material:	Rubber Seal
Temperature Rating:	-10 to 50 deg C
