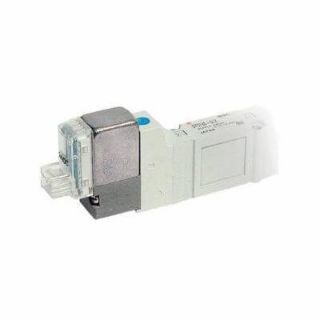

SY5140-5WOZ SMC

Name: SY5140-5WOZ SMC
Brand: SMC
SKU: SY5140-5WOZ SMC
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

SY5140-5WOZ

product.name:

SY5140-5WOZ SMC

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SMC®

Type

5-Port Single

Description

Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The Series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.

SMC® Solenoid Valve, 5-Port Single, Series: SY5000, 0.15 to 0.7 MPa, -10 to 50 deg C, 4 Ways, 2 Positions, Media: Air, Pilot Operated Actuator, Die-Cast Aluminum Body, Rubber Seal, 94.9 mm L x 35 mm W x 55.1 mm H

Standards

CE Marked | cLRus Listed

Features

Air fluid
3/5/6/12/24 VDC/100/110/200/220 VAC rated coil voltage
32 msec or less response time at 0.5 mPa without indicator light and surge voltage suppressor
2-position single function
Base mounted non plug in single/stacking base, plug in stacking base piping
Internal pilot
24 VDC solenoid voltage
M8 connector without connector
Non-locking push style manual override
Light and surge suppressor
Base mounted without sub plate port size
RC thread
Body ported 10.6 sq-mm effective area
Base mounted 12.6 sq-mm effective area

Specifications

Actuator Type:	Pilot Operated
Body Material:	Die-Cast Aluminum
Dimensions:	94.9 mm L x 35 mm W x 55.1 mm H
Media:	Air
Number of Positions:	2
Number of Ways:	4
Pressure Rating:	0.15 to 0.7 MPa
Series:	SY5000
Softgoods Material:	Rubber Seal
Temperature Rating:	-10 to 50 deg C
