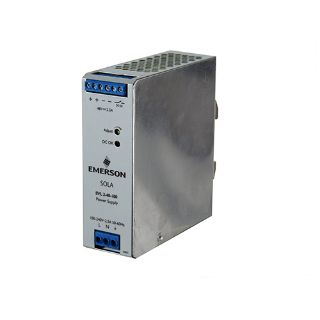

Actual Product May Vary From Image

SVL248100 SHD

Name: SVL248100 SHD
Brand: SolaHD (Emerson)
SKU: SVL248100 SHD
Availability: OutOfStock

120W 48V DIN PS 85-264VAC

Manufacturer: SolaHD (Emerson)

Manufacturer part number: SVL248100

Availability: Expected Leadtime 6 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

SolaHD

Type

SVL Essential Din Rail Series

Description

SVL Essential Din Rail Series, Nominal Output Voltage: 48VDC, Nominal Output Current: 2.5A, Max. Power: 120W, Frequency Rating: 50/66Hz, Single Phase, DIN Rail Mounting

Application

Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;

Standards

UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme

Features

Universal Input; Convection cooling; DC OK LED; DC OK Relay; Protection: short circuit, over voltage, overload, over temperature; Two year warranty

Specifications

Amperage Rating:	2.5 A
Cable Size:	Input Connector size range: 18-8 AWG (0.823-8.365 mm2) for solid conductors; Output Connector size range: 24-12 AWG (0.20-3.3 mm2) for solid conductors
Control:	DC OK Relay
Country of Origin:	TH
Efficiency:	88 % typ
Enclosure:	To be installed in an enclosure
Environmental Conditions:	To be installed in a controlled environment
Frequency Rating:	50/60 Hz
Fuse Rating:	Internally Fused
Height:	4.84 in
Length:	4.63 in
Material:	Metal
Mounting:	DIN Rail
Phase:	1
Sub Brand:	Sola
Voltage Rating:	48 VDC
Wattage:	120 W
Width:	1.57 in

Resources

Spec Sheet

Product Tags

Sola SVL (14)
