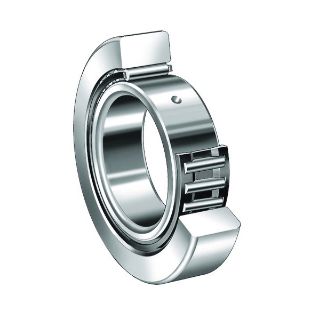

STO25 INA

Name: STO25 INA
Brand: INA
SKU: STO25 INA
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

STO25

product.name:

STO25 INA

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

INA

Type

Crowned Yoke Type

Description

Yoke type track rollers STO have an inner ring. Depending on the design, yoke type track rollers are also available as sealed versions. Bearings with an inner ring are used if the shaft or stud does not have a hardened and ground raceway. Series STO is not self-retaining. This means that the outer ring, needle roller and cage assembly and the inner ring can be fitted independently of each other. This gives simplified mounting of the bearings. The rolling elements are guided by the cage. These designs do not have axial guidance of the outer ring. Axial guidance of the outer ring and needle roller and cage assembly (for STO only) must be provided in the adjacent construction.

INA Track Roller, Crowned Yoke Type, Series: STO, 25 mm Bore, 52 mm Roller Diameter, 15.8 mm Roller Width, 16 mm Overall Width, 23200 N Load, Open Closure, 1800 rpm Maximum, -30 to 140 deg C, Uncoated

Application

Cam Gears, Bed Ways, Conveying Equipment and Linear Guidance Systems

Features

Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running
Needle roller design
Outer ring without ribs
Without seal and axial guidance
16400 N dynamic/23200 N static

Specifications

Bore Diameter:	25 mm
Closure Type:	Open
Country of Origin:	SK
Finish:	Uncoated
Load Capacity:	23200 N
Maximum Speed:	1800 rpm
Overall Width:	16 mm
Roller Diameter:	52 mm
Roller Width:	15.8 mm
Series:	STO
Temperature Rating:	-30 to 140 deg C
