SST-PB3-PCIE-2 WOO

Name: SST-PB3-PCIE-2 WOO
Brand: Molex/Woodhead
SKU: SST-PB3-PCIE-2 WOO
Availability: OutOfStock

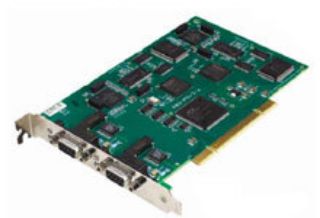

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

SST-PB3-PCIE-2

product.name:

SST-PB3-PCIE-2 WOO

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

2-Channel PCI Express

Description

BradCommunications™ network interface cards are ideal for applications where high performance control and reliability are required. Backed by superior support and service, BradCommunications™ network interfaces support a wide range of network protocols and bus formats.

Brad® SST™ PC Network Interface Card, 2-Channel PCI Express, Series: 112011, PROFIBUS, CommDTM, DLL, OPC DA Interface, PROFIBUS DPV0 Master, PROFIBUS DPV0 Slave, PROFIBUS DPV1 Master Protocol, 9.6 kbps to 12 Mbps PROFIBUS Data Transfer Rate, 3.3 VDC, 1000 VAC Isolation Supply, 6-7/8 in Length, 4.2 in Width, PC Slot Mounting, Environmental Conditions: 5 to 95% Non-Condensing , 32 to 140 deg F Operating Temperature

Application

IO Control, Operator Interface, Human Machine Interface, PC Control, Device Development and Network Diagnostics

Standards

CE Certified | EN 61000-3-2 | EN 61000-3-3 | IEC 61000-6-2

Features

Simultaneous execution of Profibus® DP master, DP slave and FDL (layer 2)
Master class 1 and class 2 DPV1 support through Windows API
Supports all standard baud rates 9.6 kbaud to 12 Mbaud
Flash memory for storage of configuration
Supports device configuration and diagnostics through FDT using commDTM
Supports all Profibus® baud rates including 45.45 kbps
Diagnostic LEDs for system status, watchdog timeout and communications status

Specifications

Country of Origin:	US
Data Transfer Rate:	9.6 kbps to 12 Mbps PROFIBUS
Environmental Conditions:	5 to 95% Non-Condensing , 32 to 140 deg F Operating Temperature
Interface:	PROFIBUS, CommDTM, DLL, OPC DA
Length:	6-7/8 in
Mounting Type:	PC Slot
Power Supply:	3.3 VDC, 1000 VAC Isolation
Protocol:	PROFIBUS DPV0 Master, PROFIBUS DPV0 Slave, PROFIBUS DPV1 Master
Series:	112011
Width:	4.2 in
