SSEPBOM40DD THO

Name: SSEPBOM40DD THO
Brand: Thomson Industries
SKU: SSEPBOM40DD THO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

SSEPBOM40DD

product.name:

SSEPBOM40DD THO

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Open

Description

The Super Smart Ball Bushing® bearing family represents a major advancement in linear bearing technology worldwide. These patented and universally self-aligning bearings offer twice the load capacity or eight times the travel life of our industry standard Super Ball Bushing® bearing. To minimize installation time and cost, the Super Smart Ball Bushing® bearing can be ordered factory-installed in an industry standard single or twin pillow block.

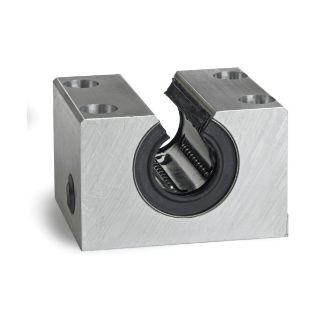

Thomson® Super Smart Ball Bushing® Linear Bearing Pillow Block, Open, Series: SSEPB, 40 mm Shaft Dia, 45 mm Center Line to Base, 77 mm Height, 108 mm Length, 91 mm Width, 13700 N Dynamic/15000 N Static, Steel Bearing, 185 deg F

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Maintenance free operation
Eliminates need for expensive lubrication systems
A precision, super finished, dual track bearing plate for optimum system smoothness and performance
Longer travel life and minimal machine downtime when replacing conventional linear bearings or the industry standard Super Ball Bushing® bearing
RoundRail™ advantage combined with universal self-alignment, eliminating the need for derating factors commonly required when using linear guides
A coefficient of friction as low as 0.001 and allows the use of smaller, less expensive motors, belts, gears and ball screws when replacing high-friction, plain bearings
Double-lip integral wipers that keep out dirt while retaining lubrication and travel life is maximized
Steady state travel speeds up to 10 ft/s and accelerations to 450 ft/s without the use of derating factors
Universal self-alignment
The bearing plate is designed to rock 0.5 deg about the hardened precision ground outer ring
The second key design feature of the Super Smart Ball Bushing® bearing plate is its ability to roll
The shape formed by the rock and roll features allows the Super Smart Ball Bushing® bearing plate to rotate about its center
The Super Smart Ball Bushing® bearing provides twice the load capacity of the industry standard Thomson® Super Ball Bushing® bearing and six times the load capacity of conventional linear bearings
The Super Smart Ball Bushing® bearing provides eight times the travel life of the industry standard Thomson® Super Ball Bushing® bearing and 216 times the travel life of conventional linear bearings
Open pillow blocks are for continuous supported shafting
For metric class shafting
Self-aligning
Integral seals both ends
Seals standard with SSE

Specifications

Bearing Material:	Steel
Center Line to Base:	45 mm
Height:	77 mm
Length:	108 mm
Load Capacity:	13700 N Dynamic/15000 N Static
Series:	SSEPB
Shaft Diameter:	40 mm
Temperature Rating:	185 deg F
Width:	91 mm
