SR-2-XY PAN

Name: SR-2-XY PAN
SKU: SR-2-XY PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

SR-2-XY

product.name:

SR-2-XY PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Dual Rated

Description

Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

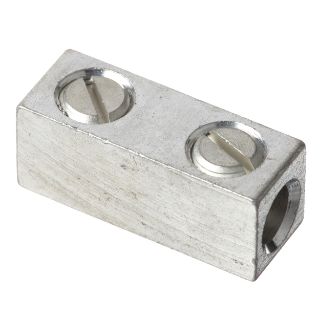

Panduit® Pan-Lug™ Mechanical Splicer/Reducer Connector, Dual Rated, Series: SR Series, Solid/Stranded Aluminum/Copper Conductor, 14 to 2 AWG, 14 to 10 AWG Conductor, 600 VAC, 0.63 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 1.38 in L x 0.5 in W x 0.56 in H

Standards

Features

Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
Wide wire range taking capability minimizes inventory requirements
Tin plated to inhibit corrosion
Rounded bottoms to facilitate taping
Solid center barrier prevents contact of dissimilar metal conductors

Specifications

Conductor Size:	14 to 2 AWG
Conductor Type:	Solid/Stranded Aluminum/Copper
Country of Origin:	US
Dimensions:	1.38 in L x 0.5 in W x 0.56 in H
Finish:	Tin Plated
Material:	Aluminum
Series:	SR Series
Specifications:	0.63 in L Wire Strip
Temperature Rating:	90 deg C
Voltage Rating:	600 VAC
