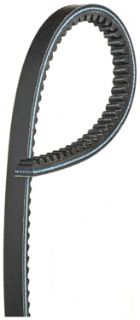

SPC5000 GAT

Name: SPC5000 GAT
Brand: Gates
SKU: SPC5000 GAT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates

Manufacturer part number:

SPC5000

product.name:

SPC5000 GAT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Gates

Alternate Supplier #

942205000

Description

Manufactured to our exacting standards for quality, safety, and dependability. Their proprietary construction ensures unmatched load-carrying capacity paired with superior flex and stretch resistance.

Features

Flex-bonded cords are chemically forged to the belt body, providing equal load distribution and bending stress absorption without cord deterioration. Patented Ethylene construction helps resists belt cracking and provides application versatility. Proprietary construction process combines flex and load-carrying capacity with reduced stretch and superior cord adhesion properties. Ideal for use as replacements on drives that require metric cross sections in a broad range of applications, including textile mills, machine tool and food processing. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Angle:	40
Belt Back Side:	Smooth
Belt Inside:	Smooth
Belt/Slab:	Belt
Color:	Black
Construcao:	Banded
Cord Material:	Polyester
Country of Origin:	MX
Effective Length (in):	198.2
Effective Length (mm):	5034
GC Base Product:	Metric Power™ V-Belts - SPC Section
Harmonized Tariff Code:	4010.39.1000
Material:	SBR
Max Temp (°C):	+60
Max Temp (F):	+140
Min Temp (°C):	-34
Min Temp (F):	-30
Number of Ribs/Strands:	1
OC (in):	198.66
OC (mm):	5046
Proposition 65:	NO
Secao:	SPC
Sided:	Single Sided
Static Conductive:	Yes
Thickness (in):	0.709
Thickness (mm):	18
Top Width (in):	0.909
Top Width (mm):	23
Unitset (V80):	Yes
