SLM100R FSG

Name: SLM100R FSG
Brand: Federal Signal
SKU: SLM100R FSG
Availability: InStock

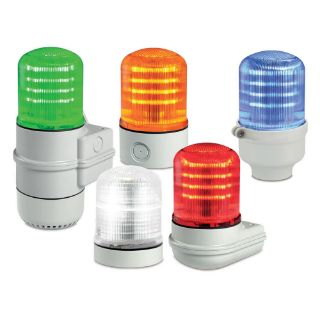

Actual Product May Vary From Image

Product Details

Manufacturer:

Federal Signal

Manufacturer part number:

SLM100R

product.name:

SLM100R FSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Federal Signal

Type

Low Profile Streamline Modular Multi-Functional

Alternate Supplier #

Grainger - 436M12

Description

Model SLM100 offers a multi-functional LED beacon with high optical performance. Developed with a multiple input technology, Model SLM100 allows three separate light effects (steady, flashing or rotating) controllable via independent electric contacts. The steady light option offers a conspicuous and consistent light Signal. The flashing mode consists of a triple flash strobe effect ideal for all applications where an immediate attention gain is mandatory. And the rotating light offers a traditional rotating beacon effect without moving parts, which enhances product life. Model SLM100 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.

Federal Signal StreamLine® Beacon, Low Profile Streamline Modular Multi-Functional, Series: SLM100, 120 to 240 VAC, 12 to 24 VAC/VDC, 70/100/150/300/360/510 mA, Cylindrical, LED Lamp, Red, Flashing/Rotating/Steady Flash, 85 fpm Flash, 50000 hr Average Life, Specifications Met: CE Marked, UL Listed, cULus Listed, Surface Mount, NEMA 4X/IP66, -22 to 122 deg F, Polycarbonate Housing, 3.9 in W x 3.9 in D x 4.23 in H

Application

Indoor/Outdoor

Standards

cULus File No. E162485 | RoHS Compliant

Features

PLC compatible with PNP or NPN connections
300 mA at 12 VDC, 150 mA at 24 VDC, 510 mA at 12 VAC, 360 mA at 24 VAC, 100 mA at 120 VAC, 70 mA at 240 VAC
Three separate light effects

Specifications

Amperage Rating:	70/100/150/300/360/510 mA
Average Life:	50000 hr
Color:	Red
Country of Origin:	IT
Dimensions:	3.9 in W x 3.9 in D x 4.23 in H
Flash Rate:	85 fpm
Flash Type:	Flashing/Rotating/Steady
Housing Material:	Polycarbonate
Lamp Type:	LED
Mounting Type:	Surface
NEMA Rating:	NEMA 4X/IP66
Series:	SLM100
Shape:	Cylindrical
Specifications Met:	CE Marked, UL Listed, cULus Listed
Temperature Rating:	-22 to 122 deg F
Voltage Rating:	120 to 240 VAC, 12 to 24 VAC/VDC
