SK 55MM MSG

Name: SK 55MM MSG
Brand: Martin Sprocket & Gear
SKU: SK 55MM MSG
Availability: OutOfStock

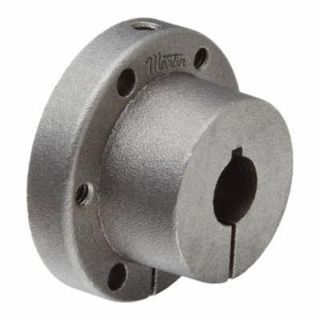

Martin SK 55MM QD Bushing, 55 mm Dia Bore, 2.812 in Dia Barrel, 3-7/8 in Dia Flange, 1.938 in OAL, Ductile Iron

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: SK 55MM

Availability: Expected Leadtime 4 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Martin

Description

Martin QD Bushing, 55 mm Bore Dia, 2.812 in Barrel Dia, 4-3/4 in Hub Dia, 3.312 in Bolt Circle, 3-7/8 in Flange Dia, 0.563 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 2 in Screw, 7000 in-lb, 1.938 in Overall Length, 4.3 x 16 mm Keyway, Ductile Iron

Features

Size SK bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange

Specifications

Barrel Diameter:	2.812 in
Bolt Circle Diameter:	3.312 in
Bore Diameter:	55 mm
Country of Origin:	US
Flange Diameter:	3-7/8 in
Flange Thickness:	0.563 in
Hub Diameter:	4-3/4 in
Keyway Size:	4.3 x 16 mm
Material:	Ductile Iron
Number of Bolt Holes:	3
Overall Length:	1.938 in
Screw Size:	5/16-18 x 2 in
Torque Rating:	7000 in-lb
