Home / SK-3 ILS

SK-3 ILS

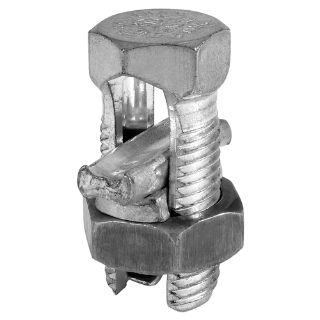

Picture of SK-3 ILS
Actual Product May Vary From Image

Product Details

Manufacturer:
Ilsco
Manufacturer part number:
SK-3
product.name:
SK-3 ILS
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

ILSCO®

Type

Type SK

Description

ILSCO® ClearChoice® Split Bolt Connector, Type SK, ACSR/Compact/Compressed/Concentric/Solid Copper Conductor, 8 to 2 AWG, 8 AWG Conductor, 0.688 x 1.547 in Bolt, 2000 VAC, 0.326 in Split, 0.812 in Hex Nut, 275 in-lb Recommended Torque, 90 deg C, Copper Alloy, Electro-Plated Tin, 1.547 in H x 0.812 in W

Application

Used in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques, tap connector and splice connector

Standards

CSA Certified | RUS Certified | UL File No. E12822 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Features

  • Manufactured from high strength copper alloy provides maximum conductivity and high breakage resistance
  • Electro-tin plated bolt, nut, spacer and pressure bar provides low contact resistance
  • For use with solid, compact, compressed, concentric copper conductors
  • Precision tooled threads allows maximum torque to be applied
  • For other aluminum applications consult factory
  • Provides maximum conductivity and high breakage resistance
  • Application versatility
  • Proper high voltage spacing and insulation techniques must be used
  • 8 to 4 AWG aluminum, 8 to 2 AWG copper main and tap conductor size

Specifications

Bolt Size:0.688 x 1.547 in
Conductor Size:8 to 2 AWG, 8 AWG
Conductor Type:ACSR/Compact/Compressed/Concentric/Solid Copper
Country of Origin:US
Dimensions:1.547 in H x 0.812 in W
Finish:Electro-Plated Tin
Material:Copper Alloy
Specifications:0.326 in Split, 0.812 in Hex Nut, 275 in-lb Recommended Torque
Temperature Rating:90 deg C
Voltage Rating:2000 VAC
