SK 1 5/16 MSG

Name: SK 1 5/16 MSG
Brand: Martin Sprocket & Gear
SKU: SK 1 5/16 MSG
Availability: OutOfStock

SK 1 5/16 MSG

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

SK 1 5/16

product.name:

SK 1 5/16 MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

Standard SK

Description

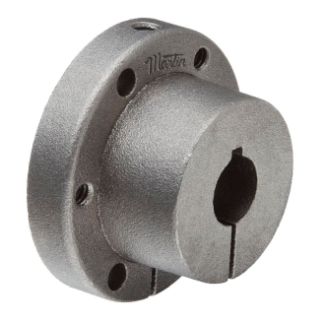

QD® (Quick Detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.

Martin QD® Bushing, Standard SK, 1.313 in Bore, 2.812 in Barrel Diameter, 3.312 in Diameter Bolt Circle, 3-7/8 in Diameter Flange, 0.563 in Flange Thickness, 3 Bolt Holes, 0.313-18 Set Screw, 5/16-18 x 2 in Cap Screw Screw, 180 in-lb Torque, 1.938 in Overall Length, 5/16 x 5/32 in Keyway, Steel

Standards

ECCN: EAR99

Features

Reverse mount through "J"
Single split through whole bushing
Bushing styles are not interchangeable

Specifications

Barrel Diameter:	2.812 in
Bolt Circle Diameter:	3.312 in
Bore Diameter:	1.313 in
Country of Origin:	US
Flange Diameter:	3-7/8 in
Flange Thickness:	0.563 in
Keyway Size:	5/16 x 5/32 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	1.938 in
Screw Size:	0.313-18 Set Screw, 5/16-18 x 2 in Cap Screw
Torque Rating:	180 in-lb
