SJ8477 RBC

Name: SJ8477 RBC
Brand: Roller Bearing Corporation
SKU: SJ8477 RBC
Availability: OutOfStock

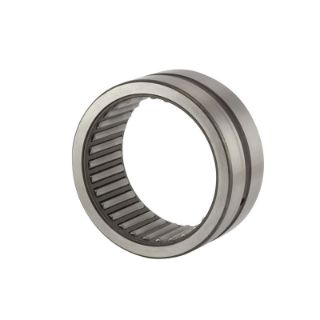

RBC® SJ8477 Pitchlign® SJ Series Heavy Duty Precision Ground Needle Roller Bearing, 2-3/4 in Dia Bore, 3-1/2 in OD, 1 Row, 1-3/4 in W, 48400 lb Load

Manufacturer: Roller Bearing Corporation

Manufacturer part number: SJ8477

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

RBC®

Type

Heavy Duty

Description

The RBC® SJ series of Pitchlign® heavy duty needle roller bearings are supplied in standard envelopes in both sealed and unsealed configurations. There are eight possible seal configurations. The seals can include double or single seal with the seal lip turned inward or outward. The seal can be mounted in the radius end of the ring or the chamfered end of the ring for optimum mounting variations.

RBC® Precision Ground Needle Roller Bearing, Heavy Duty, Series: Pitchlign® SJ Series, 2-3/4 in Bore Dia, 3-1/2 in Outside Dia, 1 Row, 1-3/4 in W, Open Closure, 48400 lb, 52100 Steel Bearing, Steel Cage, 4800 rpm Maximum, -40 to 300 deg F

Application

Gearboxes, Pumps, Steel Mill Equipment, Paper Converting Machines, Machine Tools, Textile Machinery and Sheave Blocks

Standards

ASPR | CAS | DFAR | FAR Standards | MS51961

Features

Long life, caged roller bearing
19200 lb dynamic/48400 lb static

Specifications

Bearing Material:	52100 Steel
Bore Diameter:	2-3/4 in
Cage Material:	Steel
Closure Type:	Open
Country of Origin:	US
Load Capacity:	48400 lb
Maximum Speed:	4800 rpm
Number of Rows:	1
Outside Diameter:	3-1/2 in
Series:	Pitchlign® SJ Series
Temperature Rating:	-40 to 300 deg F
Width:	1-3/4 in
