SHC1004 HWD

Name: SHC1004 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: SHC1004 HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

SHC1004

product.name:

SHC1004 HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Flexible Standard Straight

Description

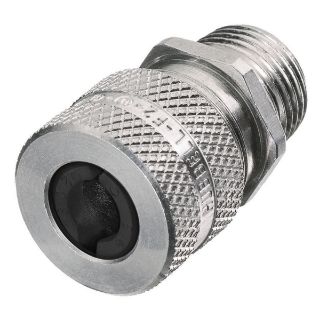

Hubbell® offers a full line of machined aluminum cord connectors in NPT hub sizes 1/4 in through 1 in and cast aluminum 1 to 3 in. They provide durable performance and a clean attractive look without adding unwanted weight.

Wiring Device-Kellems Cord Connector, Form 1 Flexible Standard Straight, Series: SHC, 1/4 in, Cable Openings: 0.25 to 0.31 in, Jacketed Cable, MNPT, Aluminum, Machined, Metallic, -30 to 225 deg F, 0.88 in Dia x 1.36 in L

Application

For use in wet locations when used with a listed nylon washer between box, fitting and hazardous locations

Standards

CSA Certified | RoHS Compliant | UL 514B

Features

Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
Patented GOTCHA™ ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
Black color code
0.54 to 0.57 in recommended knockout hole
0.46 in L thread
0.32 in Dia throat

Specifications

Cable Openings:	0.25 to 0.31 in
Cable Type:	Jacketed
Color:	Black/Metallic
Connection Type:	MNPT
Country of Origin:	US
Dimensions:	0.88 in Dia x 1.36 in L
Finish:	Machined
Material:	Aluminum
Number of Conductors:	1
Series:	SHC
Temperature Rating:	-30 to 225 deg F
Trade Size:	1/4 in
