SDP4-24-100LT SHD

Name: SDP4-24-100LT SHD
Brand: SolaHD (Emerson)
SKU: SDP4-24-100LT SHD
Availability: InStock

SDP4-24-100LT SHD

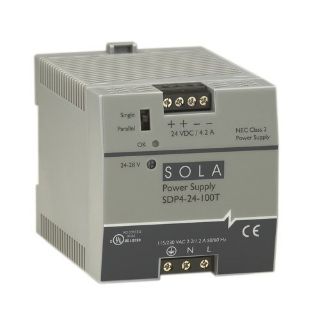

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

SDP4-24-100LT

product.name:

SDP4-24-100LT SHD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SolaHD

Type

SDP Low Power DIN Rail Series

Description

SDP Series Low Power DIN Rail Power Supplies, Input Voltage: 85-132/176-264 Vac, 210 -375 Vdc, Output Voltage: 24 -48 Vdc , Frequency: 47-63 Hz, Output Current Rating 3.8 A

Application

Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation

Standards

UL (CANADA AND US), UL 94, UL 508, UL 60950, CUL, CSA-C22.2, CE

Features

LED Status Indication, -10 to 70 DEG C Operating Temperature, Output Voltage 24 to 28 VDC, Output Current Rating 4.2A

Specifications

Amperage Rating:	1.2/2.2 A
Cable Size:	20 to 12 Solid or Stranded AWG
Country of Origin:	TW
Efficiency:	88 PCT
Enclosure:	Class 1, IP20
Environmental Conditions:	90 RH Humidity Range
Frequency Rating:	47-63 Hz
Height:	2.95 in
Length:	2.85 in
Material:	Plastic
Mounting:	DIN Rail
Voltage Rating:	132/264//375 VAC//VDC
Width:	3.8 in

Resources

Spec Sheet Warranty
