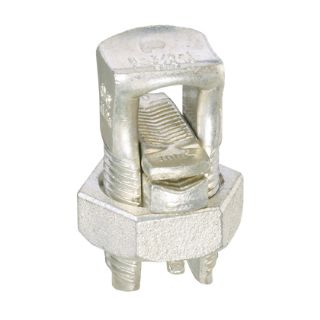

Actual Product May Vary From Image

SBCT6-C PAN

Name: SBCT6-C PAN
SKU: SBCT6-C PAN
Availability: OutOfStock

Panduit® Pan-Lug™ SBCT6-C Type SBCT Dual Rated Split Bolt Connector, 6 to 10 AWG Stranded Aluminum/Copper Conductor

Manufacturer part number: SBCT6-C

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

This product has a minimum quantity of 100

Qty:

Product Details

Brand Name

Panduit®

Type

Mechanical

Description

Panduit® Pan-Lug™ Split Bolt Connector, Type SBCT Dual Rated, Stranded Aluminum/Copper Conductor, 6 to 10 AWG Conductor, 165 in-lb Tightening Torque, #10 AWG Stranded Minimum Tap With One Maximum Run, 0.49 in Hex Body, 0.68 in Hex Nut, Tin Plated, 0.21 in ID x 1.1 in L

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65/13 | RoHS Compliant | UL Listed

Features

Made from high strength copper alloy to provide premium electrical and mechanical performance
High strength copper for corrosion resistance, range taking, dual rated for copper and alum
6 AWG stranded to 10 AWG stranded range of equal run and tap conductors

Specifications

Conductor Size:	10 to 6 AWG
Conductor Type:	Stranded Aluminum/Copper
Country of Origin:	BR
Dimensions:	0.21 in ID x 1.1 in L
Finish:	Tin Plated
Material:	Copper
Series:	SBCT
Specifications:	0.68 in Hex Nut, 10 AWG Stranded Minimum Tap With One Maximum Run, 165 in-lb Tightening Torque
Temperature Rating:	90 deg C
Voltage Rating:	600 VAC
