SBCT3/0-Q PAN

Name: SBCT3/0-Q PAN
SKU: SBCT3/0-Q PAN
Availability: OutOfStock

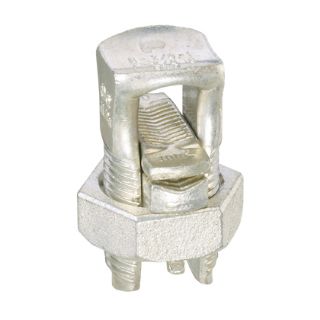

Actual Product May Vary From Image

Product Details

Manufacturer part number:

SBCT3/0-Q

product.name:

SBCT3/0-Q PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 25

Description

Brand Name

Panduit®

Type

Mechanical

Description

Panduit® offers a broad variety of split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug™ mechanical connectors provide quality performance.

Panduit® Pan-Lug™ Split-Bolt Connector, Mechanical, Series: SBCT, Stranded Aluminum/Copper Conductor, 1 to 3/0 AWG Conductor, 600 VAC, Specifications: 1-1/4 in Hex Nut, 500 in-lb Tightening Torque, 8 AWG Stranded Minimum Tap With One Maximum Run, 90 deg C, Copper, Tin Plated, 0.53 in ID x 2.12 in L x 2.12 in W Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65/13 | RoHS Compliant | UL Listed

Features

Made from high strength copper alloy to provide premium electrical and mechanical performance
High strength copper for corrosion resistance, range taking, dual rated for copper and alum
1 AWG stranded to 3/0 AWG stranded range of equal run and tap conductors

Specifications

Conductor Size:	1 to 3/0 AWG
Conductor Type:	Stranded Aluminum/Copper
Country of Origin:	BR
Dimensions:	0.53 in ID x 2.12 in L
Finish:	Tin Plated
Material:	Copper
Series:	SBCT
Specifications:	1-1/4 in Hex Nut, 500 in-lb Tightening Torque, 8 AWG Stranded Minimum Tap With One Maximum Run
Temperature Rating:	90 deg C
Voltage Rating:	600 VAC
