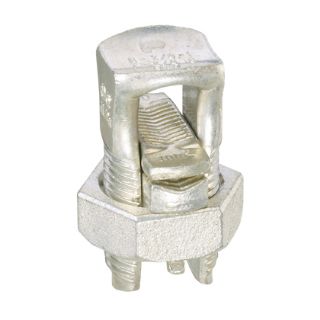

Actual Product May Vary From Image

SBCT1/0-L PAN

Name: SBCT1/0-L PAN
SKU: SBCT1/0-L PAN
Availability: OutOfStock

Panduit® Pan-Lug™ SBCT1/0-L Mechanical Split-Bolt Connector, 4 to 1/0 AWG Stranded Aluminum/Copper Conductor, Copper

Manufacturer part number: SBCT1/0-L

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

This product has a minimum quantity of 50

Qty:

Product Details

Brand Name

Panduit®

Type

Mechanical

Description

Panduit® offers a broad variety of split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug™ mechanical connectors provide quality performance.

Panduit® Pan-Lug™ Split-Bolt Connector, Mechanical, Series: SBCT, Stranded Aluminum/Copper Conductor, 4 to 1/0 AWG Conductor, 600 VAC, Specifications: 0.93 in Hex Nut, 10 AWG Stranded Minimum Tap With One Maximum Run, 385 in-lb Tightening Torque, 90 deg C, Copper, Tin Plated, 0.37 in ID x 1.73 in L Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65/13 | RoHS Compliant | UL Listed

Features

Made from high strength copper alloy to provide premium electrical and mechanical performance
High strength copper for corrosion resistance, range taking, dual rated for copper and alum
4 AWG stranded min to 1/0 AWG stranded max range of equal run and tap conductors

Specifications

Conductor Size:	4 to 1/0 AWG
Conductor Type:	Stranded Aluminum/Copper
Country of Origin:	BR
Dimensions:	0.37 in ID x 1.73 in L
Finish:	Tin Plated
Material:	Copper
Series:	SBCT
Specifications:	0.93 in Hex Nut, 10 AWG Stranded Minimum Tap With One Maximum Run, 385 in-lb Tightening Torque
Temperature Rating:	90 deg C
Voltage Rating:	600 VAC
