Actual Product May Vary From Image

SBC4S-C PAN

Name: SBC4S-C PAN
SKU: SBC4S-C PAN
Availability: OutOfStock

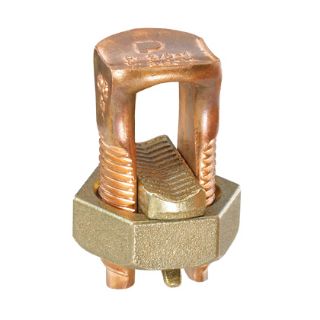

Panduit® Pan-Lug™ SBC4S-C Type SBC Split Bolt Connector, 8 to 6 AWG Stranded Copper Conductor, Copper

Manufacturer part number: SBC4S-C

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

This product has a minimum quantity of 100

Qty:

Product Details

Brand Name

Panduit®

Type

Dual Rated

Description

Panduit® Pan-Lug™ Split Bolt Connector, Type SBC, Stranded Copper Conductor, 8 to 6 AWG Conductor, Specifications: 165 in-lb Tightening Torque, #14 AWG Stranded Minimum Tap With One Maximum Run, 0.45 in Hex Body, 0.69 in Hex Nut, Mechanical Connection, Copper, 0.21 in ID x 0.98 in L Dimensions

Standards

Features

Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
High strength copper for corrosion resistance, extra long body, range taking, true hex design for correct fit
8 AWG stranded to 6 AWG stranded for equal run and tap combinations conductors

Specifications

Conductor Size:	8 to 6 AWG
Conductor Type:	Stranded Copper
Country of Origin:	BR
Dimensions:	0.21 in ID x 0.98 in L
Finish:	Bare
Material:	Copper
Series:	SBC
Specifications:	0.69 in Hex Nut, 14 AWG Stranded Minimum Tap With One Maximum Run, 165 in-lb Tightening Torque
Temperature Rating:	90 deg C
Voltage Rating:	600 VAC
