SBC3/0-Q PAN

Name: SBC3/0-Q PAN
SKU: SBC3/0-Q PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

SBC3/0-Q

product.name:

SBC3/0-Q PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 25

Description

Brand Name

Panduit®

Type

Dual Rated

Description

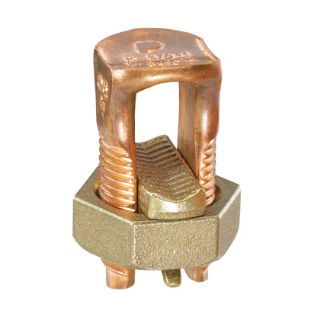

Panduit® Pan-Lug™ Split-Bolt Connector, Mechanical, Series: SBC, Stranded Copper Conductor, 1 to 3/0 AWG Conductor, Specifications: 500 in-lb Tightening Torque, #8 AWG Stranded Minimum Tap With One Maximum Run, 0.95 in Hex Body, 1.24 in Hex Nut, Mechanical Connection, Copper, 0.53 in ID x 2.07 in L Dimensions

Standards

Features

Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
High strength copper for corrosion resistance, extra long body, range taking, true hex design for correct fit
1 AWG stranded to 3/0 AWG stranded for equal run and tap combinations conductors

Specifications

Conductor Size:	1 to 3/0 AWG
Conductor Type:	Stranded Copper
Country of Origin:	BR
Dimensions:	0.53 in ID x 2.07 in L
Finish:	Tin Plated
Material:	Copper
Series:	SBC
Specifications:	1.24 in Hex Nut, 500 in-lb Tightening Torque, 8 AWG Stranded Minimum Tap With One Maximum Run
Temperature Rating:	90 deg C
Voltage Rating:	600 VAC
