SBC3-C PAN

Name: SBC3-C PAN
SKU: SBC3-C PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

SBC3-C

product.name:

SBC3-C PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 100

Description

Brand Name

Panduit®

Type

Dual Rated

Description

Panduit® offers a broad variety of split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling.

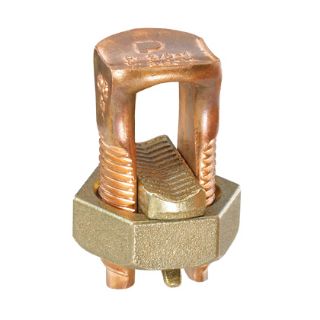

Panduit® Pan-Lug™ Split Bolt Mechanical Connector, Dual Rated, Series: SBC, Stranded Copper Conductor, 8 to 4 AWG Conductor, 600 VAC, Specifications: 0.81 in Hex Nut, 14 AWG Stranded Minimum Tap With One Maximum Run, 275 in-lb Tightening Torque, 90 deg C, Copper, Bare, 0.27 in ID x 1.16 in L x 0.58 in W Dimensions

Standards

Features

Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
High strength copper for corrosion resistance, extra long body, range taking, true hex design for correct fit
8 AWG stranded to 4 AWG stranded for equal run and tap combinations conductors

Specifications

Conductor Size:	8 to 4 AWG
Conductor Type:	Stranded Copper
Country of Origin:	BR
Dimensions:	0.27 in ID x 1.16 in L
Finish:	Bare
Material:	Copper
Series:	SBC
Specifications:	0.81 in Hex Nut, 14 AWG Stranded Minimum Tap With One Maximum Run, 275 in-lb Tightening Torque
Temperature Rating:	90 deg C
Voltage Rating:	600 VAC
